Pressure Decay Leak Test Systems

Pressure decay leak testing is the most commonly used method. Its simplicity makes it easy to automate and to integrate into production/assembly processes.

In simple terms, the pressure decay test fills a pressure vessel with air until it reaches its target pressure, cuts the air source to isolate the pressure, and measures the decay (loss) of that pressure over a set period of time;  a pressure loss greater than a predetermined setting indicates a leak. The sensitivity and accuracy of the pressure decay measurement is a function of the test part’s size and the test time. Most tests can be performed rather quickly, with highly accurate results, but the larger the part, the longer the cycle time that is required to achieve an accurate test result.

Watch the Pressure Leak Test Webinar Now

Benefits of Pressure Decay Leak Testing

  • Sensitive enough to detect very small leaks related to fluid ingress or loss and some gaseous leak rates
  • Can test in pressure or vacuum environments
  • Determines a leak rate based on pressure or vacuum loss
  • Can calibrate to a volumetric flow
  • Can report pressure or flow loss (psig or scc/min)
  • Provides a simple and highly effective leak test method

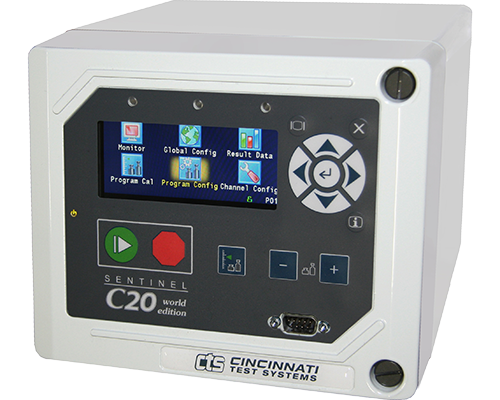

CTS’ Pressure Decay Leak Test Systems

Because the pressure decay method is so effective for leak testing and so popular across a wide range of industries and applications, we offer a variety of pressure decay leak test solutions to meet your specific needs:

Pressure Decay Leak Test Accuracy

In most instances, the smallest pressure change that can be detected via pressure decay test is
0.1 Pa/0.001 mbar/0.0000145 psi. Temperature variations can affect accuracy.

Pressure change is directly proportional to leak rate; pressure change can be converted to leak rate if the internal volume of the test article is known, the pressure change is measured accurately, and the duration of the test is recorded.

Pressure Change Formula
LR = leak rate (scc/s)
dPmeas = pressure loss measured during testing cycle (psig)
dPno-leak = pressure loss for a non-leaking part measured during test time (psig)
V = volume (cm3)
T = time (seconds)
Patm = standard atmospheric pressure (psia)

Formula derived from Ideal Gas Law.

Managing External Forces

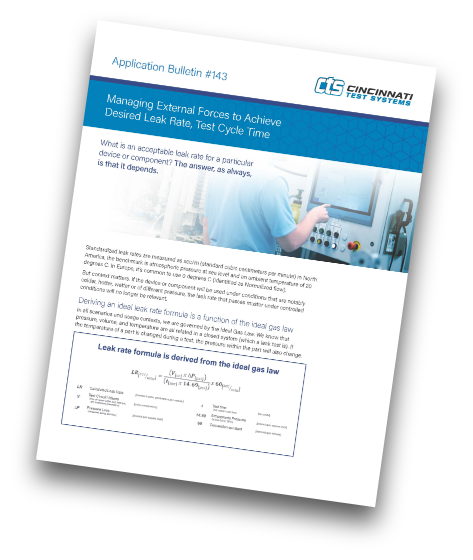

Download the Managing External Forces to Achieve Desired Leak Rate, Test Cycle Time application bulletin for more detailed information.
