CI30 Air Actuated Internal Connector

The CI30 Connector will seal the inside diameter of a pipe or tube and has a sealing range from 0.270 to 0.394” (7 to 10 mm) including 1/8” NPT, in incremental ranges or internal pipe thread sealing applications.

CI30 ID Sealing Ranges:
A1 = 0.270" - 0.290” (7 - 7.4 mm)
A = 0.290" - 0.310” (7.4 - 7.9 mm)
AA = 0.310" - 0.330” (7.9 - 8.4 mm)
AB = 0.330" - 0.394” (8.4 - 10 mm)
AC = 1/8” NPT

CI30_AB-ID_CTS-Connect__500x400

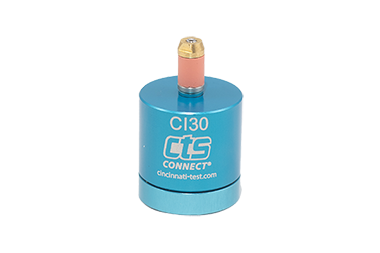

CI30

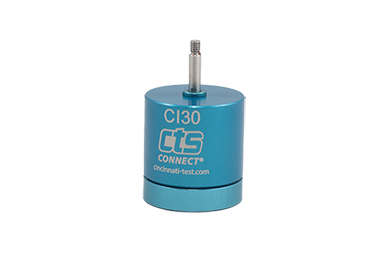

CI30 Body Only w/o Seal Kit

CI30-A1

CTSCONNECT CI30-A1 ID Pneumatic Seal - 0.270 - 0.290 Seal Range

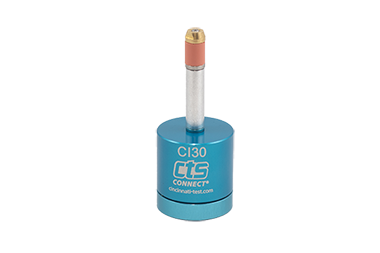

CI30-A1-E1.0 ID

CTSCONNECT CI30-A1-E1.0 ID Pneumatic Seal - 0.270 - 0.290 Seal Range w/ 1.0 Extension

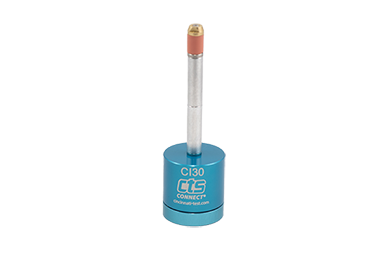

CI30-A1-E2.0 ID

CTSCONNECT CI30-A1-E2.0 ID Pneumatic Seal - 0.270 - 0.290 Seal Range w/ 2.0 Extension

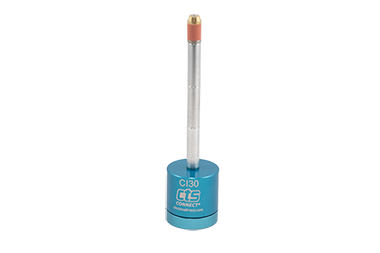

CI30-A1-E3.0 ID

CTSCONNECT CI30-A1-E3.0 ID Pneumatic Seal - 0.270 - 0.290 Seal Range w/ 3.0 Extension

CI30-A1-E4.0 ID

CTSCONNECT CI30-A1-E4.0 ID Pneumatic Seal - 0.270 - 0.290 Seal Range w/ 4.0 Extension

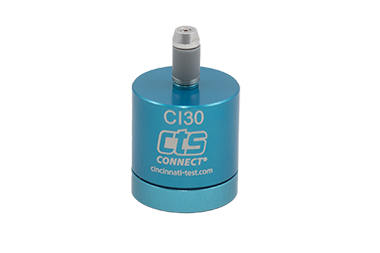

CI30-A1-M

CTSCONNECT CI30-A1-M ID Pneumatic Seal - 0.270 - 0.290 Seal Range w/ Medical Grade Seals

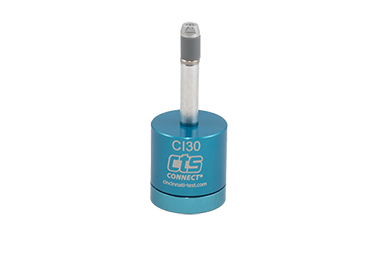

CI30-A1-E1.0-M

CTSCONNECT CI30-A1-E1.0-M ID Pneumatic Seal - 0.270 - 0.290 Seal Range w/ 1.0 Extension and Medical Grade Seals

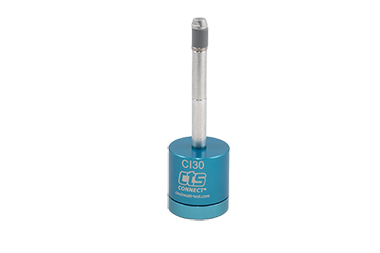

CI30-A1-E2.0-M

CTSCONNECT CI30-A1-E2.0-M ID Pneumatic Seal - 0.270 - 0.290 Seal Range w/ 2.0 Extension and Medical Grade Seals

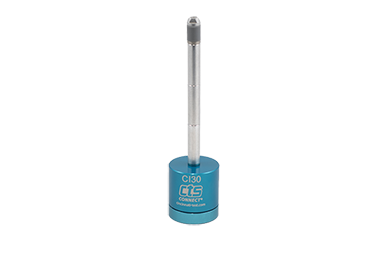

CI30-A1-E3.0-M

CTSCONNECT CI30-A1-E3.0-M ID Pneumatic Seal - 0.270 - 0.290 Seal Range w/ 3.0 Extension and Medical Grade Seals

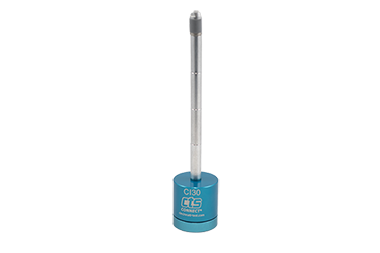

CI30-A1-E4.0-M

CTSCONNECT CI30-A1-E4.0-M ID Pneumatic Seal - 0.270 - 0.290 Seal Range w/ 4.0 Extension and Medical Grade Seals

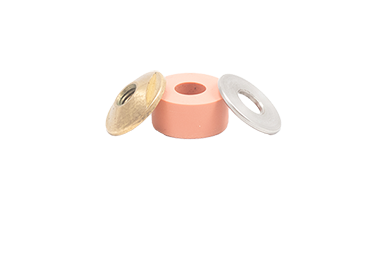

CI30-A1-MSK

CI30-A1-MSK Main Seal Kit - 0.270 - 0.290 Seal Range

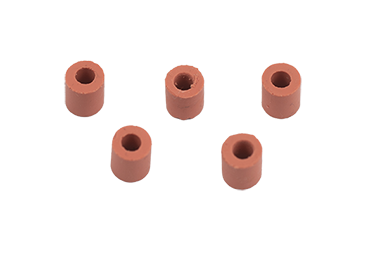

CI30-A1-SKP

CI30-A1-SKP Seal Kit Pack of 5 - 0.270 - 0.290 Seal Range

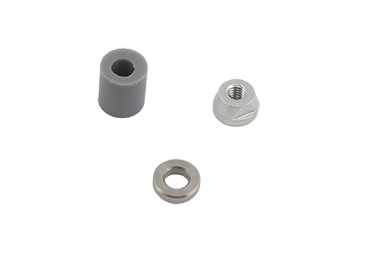

CI30-A1-MSK-M

CI30-A1-MSK-M Medical Grade Main Seal Kit - 0.270 - 0.290 Seal Range

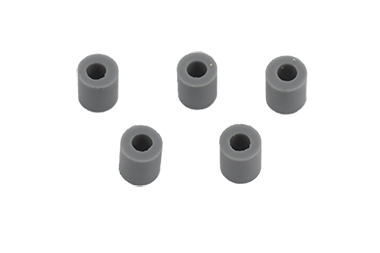

CI30-A1-SKP-M

CI30-A1-SKP-M Medical Grade Seal Kit Pack of 5 - 0.270 - 0.290 Seal Range

CI30-A

CTSCONNECT CI30-A ID Pneumatic Seal - 0.290 - 0.310 Seal Range

CI30-A-E1.0 ID

CTSCONNECT CI30-A-E1.0 ID Pneumatic Seal - 0.290 - 0.310 Seal Range w/ 1.0 Extension

CI30-A-E2.0 ID

CTSCONNECT CI30-A-E2.0 ID Pneumatic Seal - 0.290 - 0.310 Seal Range w/ 2.0 Extension

CI30-A-E3.0 ID

CTSCONNECT CI30-A-E3.0 ID Pneumatic Seal - 0.290 - 0.310 Seal Range w/ 3.0 Extension

CI30-A-E4.0 ID

CTSCONNECT CI30-A-E4.0 ID Pneumatic Seal - 0.290 - 0.310 Seal Range w/ 4.0 Extension

CI30-A-M

CTSCONNECT CI30-A-M ID Pneumatic Seal - 0.290 - 0.310 Seal Range w/ Medical Grade Seals

CI30-A-E1.0-M

CTSCONNECT CI30-A-E1.0-M ID Pneumatic Seal - 0.290 - 0.310 Seal Range w/ 1.0 Extension and Medical Grade Seals

CI30-A-E2.0-M

CTSCONNECT CI30-A-E2.0-M ID Pneumatic Seal - 0.290 - 0.310 Seal Range w/ 2.0 Extension and Medical Grade Seals

CI30-A-E3.0-M

CTSCONNECT CI30-A-E3.0-M ID Pneumatic Seal - 0.290 - 0.310 Seal Range w/ 3.0 Extension and Medical Grade Seals

CI30-A-E4.0-M

CTSCONNECT CI30-A-E4.0-M ID Pneumatic Seal - 0.290 - 0.310 Seal Range w/ 4.0 Extension and Medical Grade Seals

CI30-A-MSK

CI30-A-MSK Main Seal Kit - 0.290 - 0.310 Seal Range

CI30-A-SKP

CI30-A-SKP Seal Kit Pack of 5 - 0.290 - 0.310 Seal Range

CI30-A-MSK-M

CI30-A-MSK-M Medical Grade Main Seal Kit - 0.290 - 0.310 Seal Range

CI30-A-SKP-M

CI30-A-SKP-M Medical Grade Seal Kit Pack of 5 - 0.290 - 0.310 Seal Range

CI30-AA

CTSCONNECT CI30-AA ID Pneumatic Seal - 0.310 - 0.330 Seal Range

CI30-AA-E1.0 ID

CTSCONNECT CI30-AA-E1.0 ID Pneumatic Seal - 0.310 - 0.330 Seal Range w/ 1.0 Extension

CI30-AA-E2.0 ID

CTSCONNECT CI30-AA-E2.0 ID Pneumatic Seal - 0.310 - 0.330 Seal Range w/ 2.0 Extension

CI30-AA-E3.0 ID

CTSCONNECT CI30-AA-E3.0 ID Pneumatic Seal - 0.310 - 0.330 Seal Range w/ 3.0 Extension

CI30-AA-E4.0 ID

CTSCONNECT CI30-AA-E4.0 ID Pneumatic Seal - 0.310 - 0.330 Seal Range w/ 4.0 Extension

CI30-AA-M

CTSCONNECT CI30-AA-M ID Pneumatic Seal - 0.310 - 0.330 Seal Range w/ Medical Grade Seals

CI30-AA-E1.0-M

CTSCONNECT CI30-AA-E1.0-M ID Pneumatic Seal - 0.310 - 0.330 Seal Range w/ 1.0 Extension and Medical Grade Seals

CI30-AA-E2.0-M

CTSCONNECT CI30-AA-E2.0-M ID Pneumatic Seal - 0.310 - 0.330 Seal Range w/ 2.0 Extension and Medical Grade Seals

CI30-AA-E3.0-M

CTSCONNECT CI30-AA-E3.0-M ID Pneumatic Seal - 0.310 - 0.330 Seal Range w/ 3.0 Extension and Medical Grade Seals

CI30-AA-E4.0-M

CTSCONNECT CI30-AA-E4.0-M ID Pneumatic Seal - 0.310 - 0.330 Seal Range w/ 4.0 Extension and Medical Grade Seals

CI30-AA-MSK

CI30-AA-MSK Main Seal Kit - 0.310 - 0.330 Seal Range

CI30-AA-SKP

CI30-AA-SKP Seal Kit Pack of 5 - 0.310 - 0.330 Seal Range

CI30-AA-MSK-M

CI30-AA-MSK-M Medical Grade Main Seal Kit - 0.310 - 0.330 Seal Range

CI30-AA-SKP-M

CI30-AA-SKP-M Medical Grade Seal Kit Pack of 5 - 0.310 - 0.330 Seal Range

CI30-AB

CTSCONNECT CI30-AB ID Pneumatic Seal - 0.330 - 0.394 Seal Range

CI30-AB-E1.0 ID

CTSCONNECT CI30-AB-E1.0 ID Pneumatic Seal - 0.330 - 0.394 Seal Range w/ 1.0 Extension

CI30-AB-E2.0 ID

CTSCONNECT CI30-AB-E2.0 ID Pneumatic Seal - 0.330 - 0.394 Seal Range w/ 2.0 Extension

CI30-AB-E3.0 ID

CTSCONNECT CI30-AB-E3.0 ID Pneumatic Seal - 0.330 - 0.394 Seal Range w/ 3.0 Extension

CI30-AB-E4.0 ID

CTSCONNECT CI30-AB-E4.0 ID Pneumatic Seal - 0.330 - 0.394 Seal Range w/ 4.0 Extension

CI30-AB-M

CTSCONNECT CI30-AB-M ID Pneumatic Seal - 0.330 - 0.394 Seal Range w/ Medical Grade Seals

CI30-AB-E1.0-M

CTSCONNECT CI30-AB-E1.0-M ID Pneumatic Seal - 0.330 - 0.394 Seal Range w/ 1.0 Extension and Medical Grade Seals

CI30-AB-E2.0-M

CTSCONNECT CI30-AB-E2.0-M ID Pneumatic Seal - 0.330 - 0.394 Seal Range w/ 2.0 Extension and Medical Grade Seals

CI30-AB-E3.0-M

CTSCONNECT CI30-AB-E3.0-M ID Pneumatic Seal - 0.330 - 0.394 Seal Range w/ 3.0 Extension and Medical Grade Seals

CI30-AB-E4.0-M

CTSCONNECT CI30-AB-E4.0-M ID Pneumatic Seal - 0.330 - 0.394 Seal Range w/ 4.0 Extension and Medical Grade Seals

CI30-AB-MSK

CI30-AB-MSK Main Seal Kit - 0.330 - 0.394 Seal Range

CI30-AB-SKP

CI30-AB-SKP Seal Kit Pack of 5 - 0.330 - 0.394 Seal Range

CI30-AB-MSK-M

CI30-AB-MSK-M Medical Grade Main Seal Kit - 0.330 - 0.394 Seal Range

CI30-AB-SKP-M

CI30-AB-SKP-M Medical Grade Seal Kit Pack of 5 - 0.330 - 0.394 Seal Range

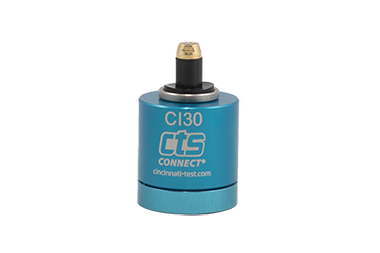

CI30-AC

CTSCONNECT CI30-AC ID Pneumatic Seal - 1/8NPT Seal Range

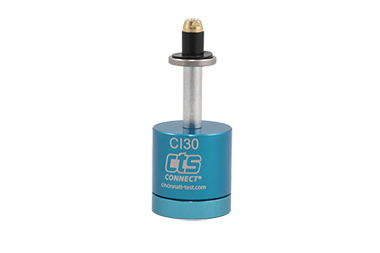

CI30-AC-E1.0 ID

CTSCONNECT CI30-AC-E1.0 ID Pneumatic Seal - 1/8NPT Seal Range w/ 1.0 Extension

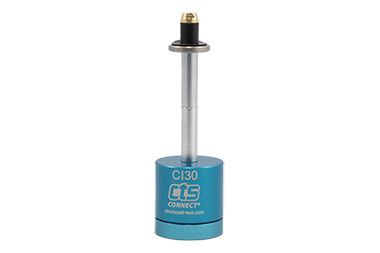

CI30-AC-E2.0 ID

CTSCONNECT CI30-AC-E2.0 ID Pneumatic Seal - 1/8NPT Seal Range w/ 2.0 Extension

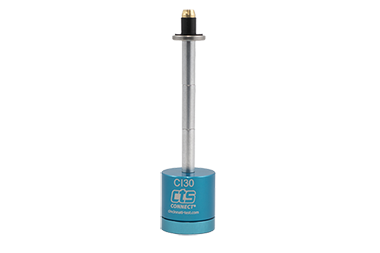

CI30-AC-E3.0 ID

CTSCONNECT CI30-AC-E3.0 ID Pneumatic Seal - 1/8NPT Seal Range w/ 3.0 Extension

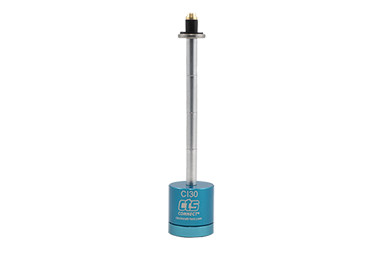

CI30-AC-E4.0 ID

CTSCONNECT CI30-AC-E4.0 ID Pneumatic Seal - 1/8NPT Seal Range w/ 4.0 Extension

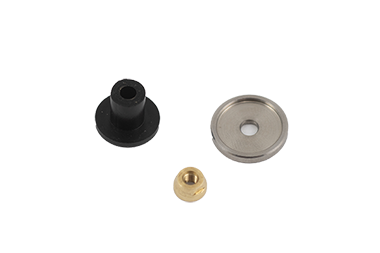

CI30-AC-MSK

CI30-AC-MSK Main Seal Kit - 1/8NPT Seal Range

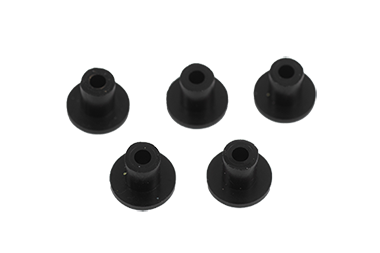

CI30-AC-SKP

CI30-AC-SKP Seal Kit Pack of 5 - 1/8NPT Seal Range

CI30-M8

CTSCONNECT CI30-M8 ID Pneumatic Seal - M8 Seal Range

CI30-M8-MSK

CI30-M8-MSK Main Seal Kit - M8 Seal Range

CI30-M8-SKP

CI30-M8-SKP Seal Kit Pack of 5 - M8 Seal Range

CI30-M10

CTSCONNECT CI30-M10 ID Pneumatic Seal - M10 Seal Range

CI30-M10-MSK

CI30-M10-MSK Main Seal Kit - M10 Seal Range

CI30-M10-SKP

CI30-M10-SKP Seal Kit Pack of 5 - M10 Seal Range

CI30-SAE-0312

CTSCONNECT CI30-SAE-0312 ID Pneumatic Seal - SAE 5/16 Seal Range

CI30-SAE-0312-MSK

CI30-SAE-0312-MSK Main Seal Kit - SAE 5/16 Seal Range

CI30-SAE-0312-SKP

CI30-SAE-0312-SKP Seal Kit Pack of 5 - SAE 5/16 Seal Range

CI30-SAE-0375

CTSCONNECT CI30-SAE-0375 ID Pneumatic Seal - SAE 3/8 Seal Range

CI30-SAE-0375-MSK

CI30-SAE-0375-MSK Main Seal Kit - SAE 3/8 Seal Range

CI30-SAE-0375-SKP

CI30-SAE-0375-SKP Seal Kit Pack of 5 - SAE 3/8 Seal Range

CI30-SAE-0437

CTSCONNECT CI30-SAE-0437 ID Pneumatic Seal - SAE 7/16 Seal Range

CI30-SAE-0437-MSK

CI30-SAE-0437-MSK Main Seal Kit - SAE 7/16 Seal Range

CI30-SAE-0437-SKP

CI30-SAE-0437-SKP Seal Kit Pack of 5 - SAE 7/16 Seal Range
